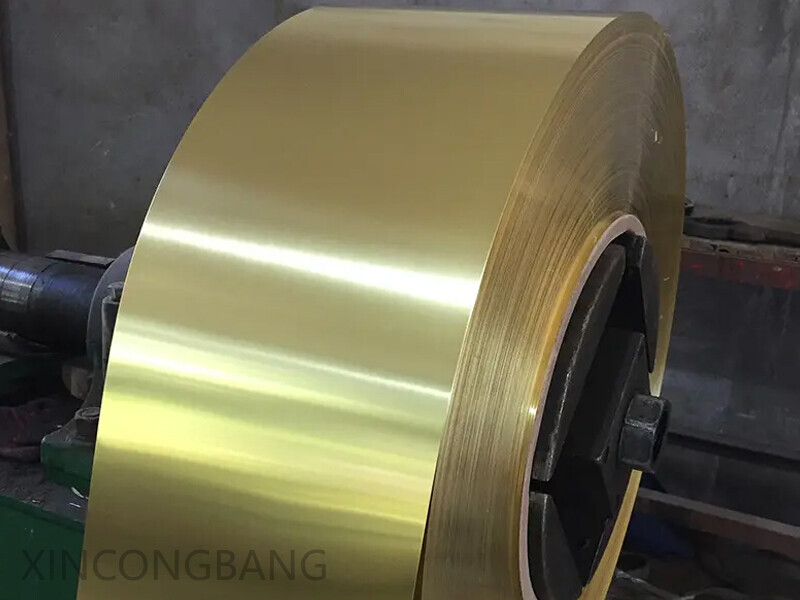

Size range of C27400 copper strip and coil:
Thickness range: C27400 copper strip thickness is usually between 0.5 mm and 16 mm.
Width range: Copper strip width can be up to 1250 mm.
Length range: Standard roll size of copper coil is as small as 300 mm and as large as 1000 mm.
International standards:
C27400 copper alloy complies with the following international standards:
GB/T 2051-1989: Chinese national standard for low-phosphorus brass materials.
DIN EN 13601: European standard for highly conductive copper strip.
Chemical composition (mass percentage)
Copper (Cu): 61%-64%
Zinc (Zn): Balance (about 35%-39%)
Lead (Pb): ≤0.10% (some data suggest 0.08%-0.5%, but most limit to ≤0.1%)
Iron (Fe): ≤0.05%-0.15%
Other elements (such as nickel, tin, aluminum, etc.): Total ≤0.5%
Mechanical properties are significantly affected by processing state (such as soft state, hard state, hot state, etc.), and typical values are as follows:
Tensile strength (σ₆)
Soft state (M): ≥290 MPa (such as annealed state)
Hard state (H80): 510 MPa (about 74 ksi)
General standard: 220-585 MPa (depending on processing state)
Yield strength (σ₀.₂)
Soft state: ≥160 MPa
Hard state (H80): 379 MPa (about 55 ksi)
Other states: 28-48 ksi (about 193-331 MPa)
Elongation (δ)
Soft state: ≥30%
Hard state: 10%-15%
Semi-hard state: ≥15%-20%
Hardness
Vickers hardness (HV): 85-175 (depending on state)
Rockwell hardness (HRB) ：10-20
Other properties
Electrical conductivity: 27%-30% IACS (lower than pure copper, but better than most alloys)
Thermal conductivity: 67-138 W/(m·K)
Density: 8.7 g/cm³
